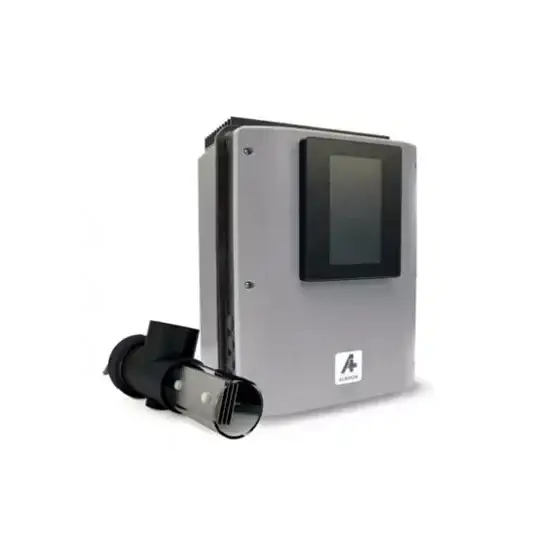

Albixon Oxilife salt chlorinator industrial control panel

Brilix Oxilife presents an advanced, semi-automatic salt chlorinator designed for optimal water quality in pools. This sophisticated unit performs precise measurement and automatic adjustment of the pH value. The user configures a desired salt level, after which the system doses salt to maintain this value. To achieve complete automation of chlorine levels, there is the optional Brilix Redox Module, which enables the Oxilife salt chlorinator to dose salt based on a predetermined REDOX value, ensuring a constant and ideal disinfection level.

An additional innovation in Albixon Oxilife is the integrated ozonator, which effectively reduces the need for supplementary chlorine additions. During operation, OXILIFE performs not only electrolysis but also hydrolysis. This dual process generates powerful oxidants directly from the pool water, resulting in exceptionally effective disinfection of the pool.

The outstanding benefits of OXILIFE water treatment include:

1) Optimally salted water that contributes to a superior swimming experience.

2) Low operating costs, making the investment economically advantageous in the long term.

3) Advanced water treatment that combines electrolysis and hydrolysis to deliver unparalleled purity.

4) Elimination of the requirement for handling and storage of chlorine, which simplifies maintenance and increases safety.

TECHNICAL PARAMETERS OXYLIFE

Intensity/h: 0 – 100 %

Salt concentration: From 1.5 g to 100 g NaCl.l -1

Pool volume m 3 (up to 28°C): 60 m3

Pool volume m 3 (+28 °C): 40 m3

Display: 2.8" TFT color screen

Power supply: 220 V 50/60 Hz

Output: 8 – 15A

Maximum consumption: 120W

Dimensions: 270 x 220 x 115 mm

Automatic cleaning: Programmable from 1 to 24 hours.

Safety flow sensor: Gas and mechanical

Alarm: Insufficient salt amount, – no flow, – low/high pH values, – max pH measurement time, – memory error

Display of salt concentration: Salt detection in g.l -1 (± 10 %)

Electrolytic cell: 5 titanium plates MONOPOLAR cells

Minimum flow rate: 5 m3. h-1

Pipe connection diameter: 63 mm

Maximum pressure: 4 kg. cm-2

Maximum temperature: 45°C

Probe lifespan: 8000 hours of operation

Self-cleaning: YES

Communication: MODBUS / WIFI

Control of main outputs: Filtration time / lighting / temperature

Control of additional outputs: 4 relays to control 4 other pool units
