Choosing and maintaining the right pool sand is one of the most critical aspects of ensuring crystal-clear and safe pool water. The filtration system is the heart of the pool's water quality, and the sand used in sand filters plays a crucial role in capturing particles, dirt, and microorganisms. For Swedish pool owners dealing with challenges such as changing weather conditions, birch leaves, pollen, and extended seasonal use, choosing the correct filter sand becomes especially important for maintaining optimal water quality throughout the year.
What is pool sand and why is it needed?
Pool sand is a specially treated silica-based sand used in sand filters to mechanically clean pool water. Unlike ordinary construction sand or beach sand, filter sand has undergone careful sorting and treatment to achieve specific grain sizes and properties that optimise filtration.

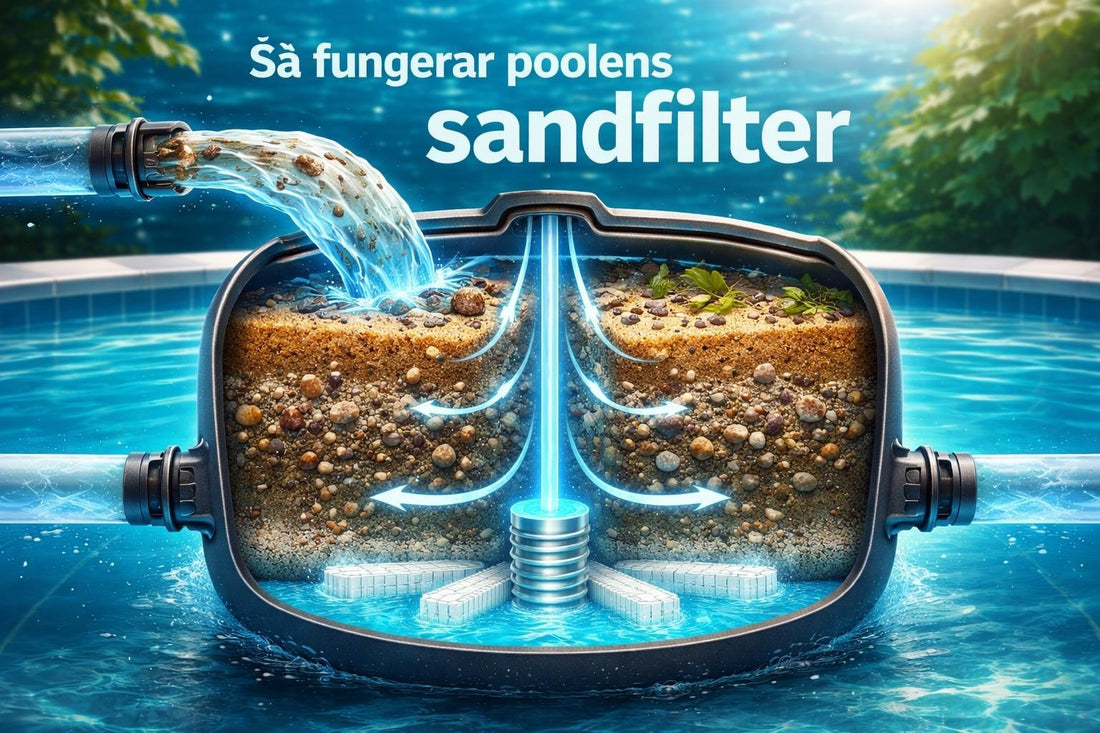

The function of sand in the filtration system is based on several mechanical principles. As the water flows through the sand layer, particles are captured through separation, adsorption, and sedimentation. The finest particles get trapped in the small spaces between the sand grains, while larger contaminants are filtered out in the upper layers.
The difference between different types of sand
Not all types of sand are suitable for pool filtration. Here are the main categories:
- Quartz sand (silica sand): The most common type for pool filters, with high hardness and chemical stability
- Glass media: Recycled glass as an alternative to traditional sand, with better filtration performance
- Zeolite sand: Natural mineral with ion-exchange properties for improved water quality
- AFM (Activated Filter Media): Processed glass with self-disinfecting properties
Standard pool sand usually consists of quartz sand with a grain size between 0.4-0.8 mm, which has proven to be the optimal balance between filtration efficiency and water flow.
The right grain size for different pool systems
The grain size of pool sand is crucial for filtration performance and must match both the filter tank specifications and the size of the pool. An incorrect choice can lead to poor water quality, high pressure in the system, or clogging too quickly.
| Grain size | Application | Advantages | Disadvantages |
|---|---|---|---|
| 0.4-0.8 mm | Standard pools | Optimal filtration, balanced flow | Requires regular backwashing |
| 0.8-1.2 mm | Large pools | Lower pressure drop, longer cycles | Less effective fine filtration |
| 0.2-0.4 mm | Small pools/spas | Very fine filtration | High pressure, frequent backwashing |
Adapt to the Swedish climate
The Scandinavian climate places special demands on pool sand and filtration systems. In spring, many pool owners face problems with heavy pollen and birch leaf fall, which requires more efficient filtration during this period.
For pools operated seasonally, it is especially important to choose a sand that does not compact during the winter period. When the system is drained of water, moisture and freezing can affect the structure of the sand, which means high-quality sand with good drainage capacity is essential.
Pools with pool deck or integrated systems often need greater filtration capacity due to the increased particle load from surrounding surfaces.
Installation and replacement of pool sand
A correctly carried out sand replacement is crucial for filter efficiency. Most sand filters need to be replaced every 3-5 years, but this can vary depending on usage, water quality, and maintenance.
Step-by-step guide to replacing sand
- Preparation: Turn off the pool pump and close all valves to the filter
- Draining: Drain the filter vessel completely through the drain valve
- Removal: Open the top of the tank and scoop or vacuum out the old sand
- Inspection: Check the filter pipes and strainers for damage or cracks
- Protective covering: Cover the strainers and pipes to prevent sand blockage
- Filling: Pour in new pool sand gradually, fill the tank vessel to 2/3
- Settling: Let the sand settle naturally, avoid compacting it hard
- Backwashing: Run a thorough backwash before normal operation
It is important to fill the filter with the correct amount of sand. Too little sand reduces filtration efficiency, while too much sand can block water flow and create high pressure in the system.
Common mistakes during installation
Many pool owners make the same mistakes when replacing pool sand. Packing the sand too tightly is one of the most common problems, which reduces the sand's ability to capture particles. Another common mistake is not properly covering the filter pipes, which can lead to sand ending up in the pool.
Maintenance and optimisation of filter sand
Regular maintenance of pool sand extends its lifespan and ensures consistent filtration performance. Although sand does not need to be replaced as often as cartridges, it requires continuous attention.
Backwashing is the primary maintenance method for sand filters. This is done by reversing the water flow through the filter, which loosens and flushes away accumulated dirt. The frequency depends on pool usage and environmental factors:
- Normal use: Every 2-4 weeks
- Heavy use or lots of debris: Every week
- After severe storms or pollen periods: Immediately
Signs that the sand needs replacing
Pool sand gradually deteriorates over time. Here are indications that it is time for replacement:
- The water remains cloudy despite correct chemical balance and backwashing
- The filtration pressure increases noticeably and does not return after backwashing
- Visible sand in the pool or on the bottom
- Increased chemical consumption to maintain water quality
- The sand has hardened or clumped together
Chemical cleaning of filter sand
In addition to mechanical backwashing, pool sand can be treated with specially formulated filter cleaners. These chemicals dissolve organic oils, fats, and limescale deposits that ordinary backwashing does not remove.
A deep clean is recommended 1-2 times per season by adding filter cleaner directly into the filter vessel and letting it work overnight before backwashing. This procedure can extend the life of the sand significantly.
Troubleshooting and problem-solving
Even with proper maintenance, problems can arise with pool sand systems. Understanding the most common problems and their solutions can save both time and money.
| Problem | Possible cause | Solution |
|---|---|---|
| Sand in the pool | Broken laterals/strainers | Replace damaged components immediately |
| High pressure | Dirty or compacted sand | Backwashing or sand replacement |
| Cloudy water | Channelling in the sand | Stir up the sand or replace it completely |
| Low pressure | Too little sand in the filter | Add more sand to the correct level |
Channelling in sand filters
Channelling is one of the more subtle problems with pool sand. This occurs when the water creates "shortcuts" through the sand layer instead of filtering evenly through the entire mass. The result is poor filtration even though the filter appears to be working normally.
To prevent channelling, it is important to avoid packing the sand too tightly during installation and to perform regular backwashing. If channelling has already occurred, it can sometimes help to carefully stir up the sand layer with a long plastic rod, but complete sand replacement is often required.
Alternatives to traditional pool sand
While traditional silica-based sand is still the most common solution, alternative filter media have become increasingly popular among Swedish pool owners seeking improved performance or more environmentally friendly options.
Glass media is made from recycled glass processed to a similar grain size as sand. The advantages include:
- Up to 25% better filtration than traditional sand
- Longer lifespan (7-10 years compared with 3-5 years)
- Less prone to channelling
- Reduced need for backwashing
- Environmentally friendly alternative
Zeolite media are natural volcanic minerals with unique ion-exchange properties. They can capture ammonia and certain heavy metals that ordinary pool sand misses, which is especially valuable for pools with a high load or in areas with water quality issues.
Cost-benefit analysis for filter media
When considering alternatives to standard pool sand, it is important to weigh the initial investment against long-term savings and performance benefits.
An average sand filter for a 40 m³ pool requires approximately 100-150 kg of sand. Standard quartz sand typically costs 5-8 kr/kg, while glass media may cost 15-20 kr/kg and zeolite 20-30 kr/kg. Despite the higher initial cost, the improved filter media can be more cost-effective over time through:
- Longer lifespan between replacements
- Reduced chemical consumption
- Lower energy costs through more efficient filtration
- Less maintenance time
For Swedish pool owners planning to build a pool it is worth discussing filtration options already at the planning stage in order to optimise both performance and long-term operating costs.
Optimise filtration for different pool types
Different pool constructions and usage patterns require an adapted strategy for pool sand and filtration. What works optimally for a small family pool is not necessarily ideal for a larger glasfiberpool or PP pool.
Filtration needs for different pool materials
Fibreglass pools generally have smoother surfaces than concrete pools, which means fewer particles are released from the pool walls. This may allow for slightly coarser pool sand without compromising water quality. On the other hand, pools with pool enclosure can collect more condensation and moisture-related growth, requiring more frequent filtration.
PP pools, with their exceptional insulation properties, often maintain a more even water temperature, which can affect the length and efficiency of the filtration cycle. Warmer water promotes bacterial growth, which requires more intensive filtration during warm periods.
Adapt filtration by season
The Scandinavian climate brings major variations in filtration needs:
Spring (April-May): An intensive period with pollen and birch leaves requires daily backwashing and potentially supplementation with a pool robot for effective cleaning.
Summer (June-August): The highest usage period with an increased need for continuous filtration, often 12-16 hours per day.
Autumn (September-October): Reduced need but still important to maintain water quality before winter cover.
Winter: For seasonally used pools, the system is drained, but for year-round pools reduced but continuous filtration is required.
Integration with modern pool systems
Modern pool technology has transformed how we manage pool sand and filtration systems. Smart control systems can now optimise filtration cycles based on usage patterns, water quality, and energy costs.
Automatic dosing systems as described in information about automatic dosing system work in symbiosis with sand filters to maintain optimal water quality. By continuously monitoring pH, chlorine, and other parameters, these systems can adjust chemical dosing, reducing the load on the filter sand.
The filter technology of the future
Developments in filtration technology are moving towards increasingly sophisticated solutions. Hybrid filters that combine pool sand with cartridge elements or UV sterilisation are becoming increasingly common for pools that require the highest water quality.
Self-monitoring systems with sensors that detect pressure changes and water quality can automatically initiate backwashing when needed, maximising filter efficiency while minimising water waste and energy consumption.
For new pool installations, it is recommended to include future-proof filtration solutions that can be upgraded with smart components over time. This is especially relevant for Swedish pool owners investing in premium pools where water quality and ease of use are in focus.
Environmental aspects and sustainability
Environmental awareness has become increasingly central in the pool industry, and the choice of pool sand affects both the ecological footprint and resource use. Traditional silica-based sand is a natural resource that requires mining, while alternatives such as glass media make use of recycled material.
Water consumption during backwashing is a significant environmental factor. A typical sand filter replacement can consume 500-1000 litres of water, which justifies extending service life through proper maintenance and the use of long-lasting filter media.
Modern filtration strategies focus on:
- Optimised backwashing cycles based on actual need rather than scheduled routine
- Use of recyclable filter media
- Integration with energy-efficient pumps for reduced electricity consumption
- Longer intervals between sand replacement through improved maintenance
Swedish pool owners can also benefit from combining effective sand filtration with pool service for professional optimisation of the system, improving both sustainability and performance.
Properly selected and maintained pool sand is the foundation of crystal-clear water and a trouble-free pool experience throughout the season. By understanding the mechanics of filtration, choosing the right media, and implementing regular maintenance, you can maximise both water quality and the system's lifespan. Pooltime® offers extensive expertise in pool filtration and maintenance, with tailored solutions adapted to Swedish conditions and a complete range of high-quality filter materials and accessories to keep your pool in top condition year after year.
