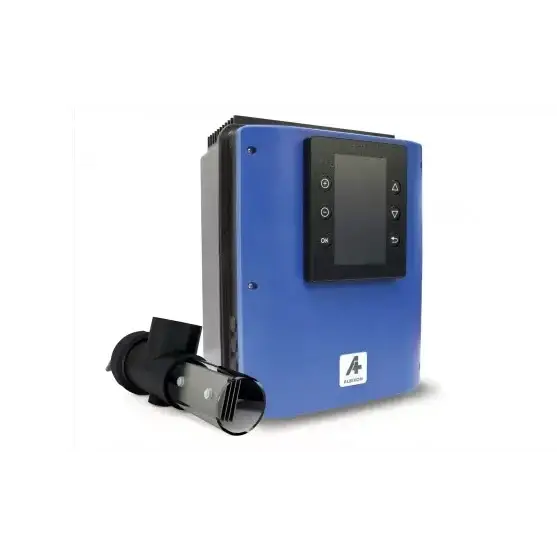

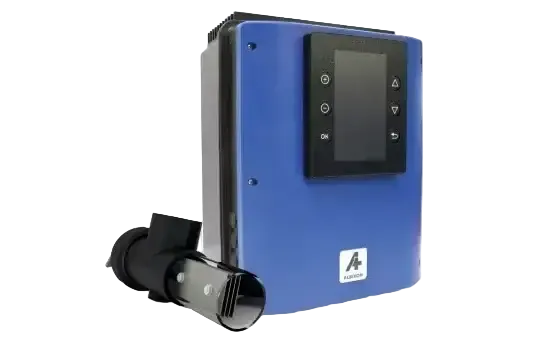

Albixon NEOSALT Salt Chlorinator

Brilix NeoSalt is an advanced salt chlorinator designed for effective pool cleaning. The system automatically doses salt into your pool based on a preset, user-defined value. The flexible construction of this albixon neosalt salt chlorinator makes it possible to place the control panel separately from the salt cell itself, providing significant freedom during installation. A single cable connects the panel to the salt cell, and for longer distances, an extension adapter can be used to optimize placement.

TECHNICAL PARAMETERS NeoSalt 16
Brilix NeoSalt 16 is a powerful salt chlorinator that delivers a performance intensity of 0-16 g Cl2/h, with a maximum chlorine production of 16 g/h. This capacity ensures optimal and effective disinfection of your pool. The unit is compatible with a wide spectrum of salt concentrations, from 4 to 100 g NaCl/l. This specific model, albixon neosalt, is dimensioned for pool volumes up to 65 m3 at water temperatures below 28°C, and up to 40 m3 when the water temperature exceeds 28°C. This makes it ideal for a variety of pool sizes and conditions, including those equipped with pool covers.

The unit is equipped with a clear 1.44" TFT color display that offers easy and intuitive reading of the system status. The power supply is via 230 V 50/60 Hz, with an output of 8-15 A and a maximum power consumption of 120 W. With compact dimensions of 270 x 220 x 115 mm, it can be easily integrated into existing pool systems without taking up unnecessary space.

The integrated automatic functions of this neosalt salt chlorinator include programmable automatic cleaning, adjustable from 1 to 24 hours, as well as safety flow sensors for both gas and mechanical flow. A comprehensive alarm system warns the user of insufficient salt concentration, no flow, or memory errors, ensuring high operational reliability. It is important to note that the unit does not directly display the current salt concentration in the pool.

The electrolytic cell consists of 4 monopolar titanium plates, which contribute to the system's efficiency and lifespan. The unit requires a minimum flow rate of 5 m3/h and has a pipe connection diameter of 63 mm. Maximum allowable pressure is 4 kg/cm2 and maximum temperature is 45°C. A self-cleaning function is integrated to minimize maintenance needs. Note that control of main and additional outputs is not included in this model.
