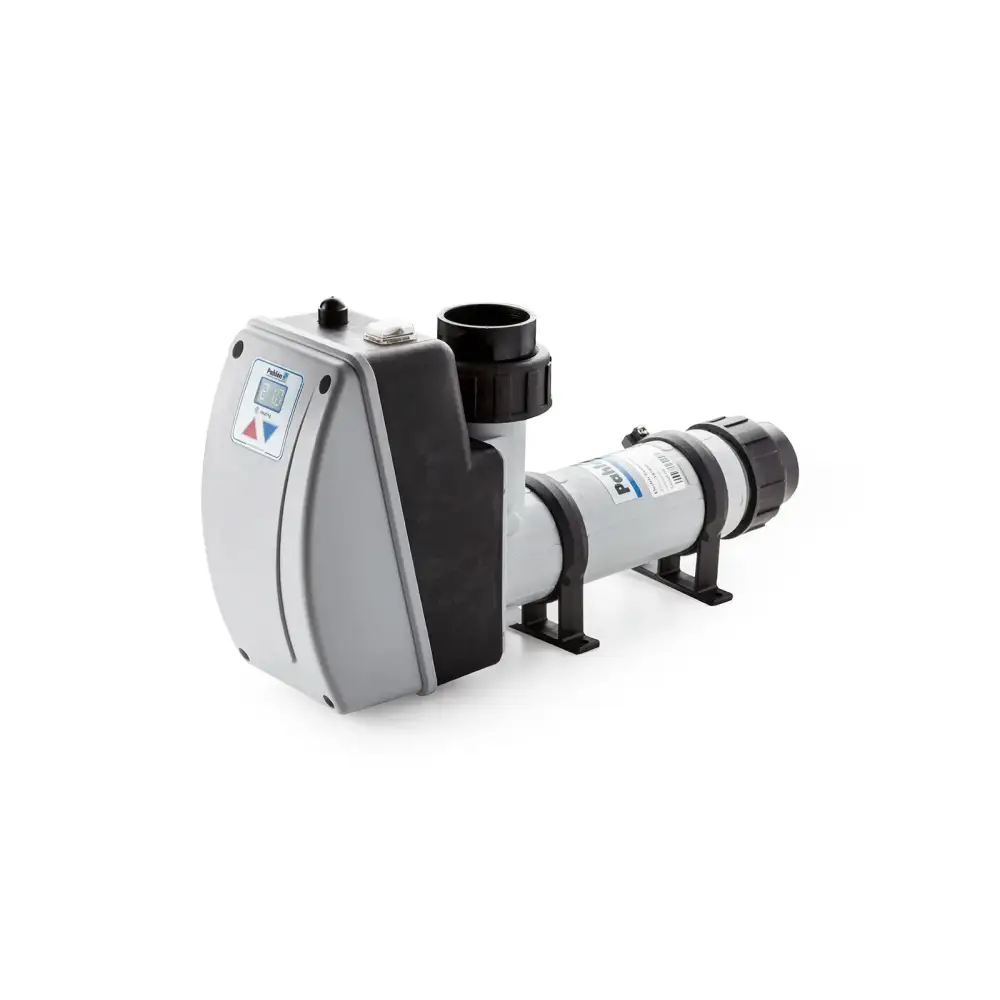

Pahlen Electric Heater Aqua HL

Electric heater Aqua HL 3-15kW
Aqua HL electric heater has digital control.
Electric heater with digital control, where the desired pool temperature can be set easily and the current pool temperature is shown on an LED display.

In addition to built-in overheating protection and flow monitoring, the heater has built-in contactors, which makes installation easier. The immersion cartridge is made of Incoloy 825 or titanium ASTM grade 1, and the casing is made of glass fibre reinforced polypropylene.

Aqua HL is available with an output of 3-15 kW and up to 415 V (230 V 1-phase, 400/415 V 3-phase) and is equipped with connection fittings for bonding Ø 50 mm pipes.

Minimum flow is 90 l/min. Maximum pressure: 2 bar.

Electronic digital control panel
– Built-in safety device switches off the heater at 45°C
– Optimised for low energy consumption
– Easy setting of the pool temperature
– Clear digits show the pool temperature and the set temperature
– Clearly shows when the heater is operating

Electric heater with digital display for easy setting of the desired pool temperature

FEATURES

Aqua HL comes complete with contactors and electronics.
Capacity 3-15 kW.
Digital control and display.
Made of reinforced thermoplastic.
Horizontal installation.
Electric heater made of Incoloy 825 or titanium.
Equipped with overheating protection and flow monitoring.
Connections Ø50 mm.
Equipped with double contactors according to electrical safety standards.
