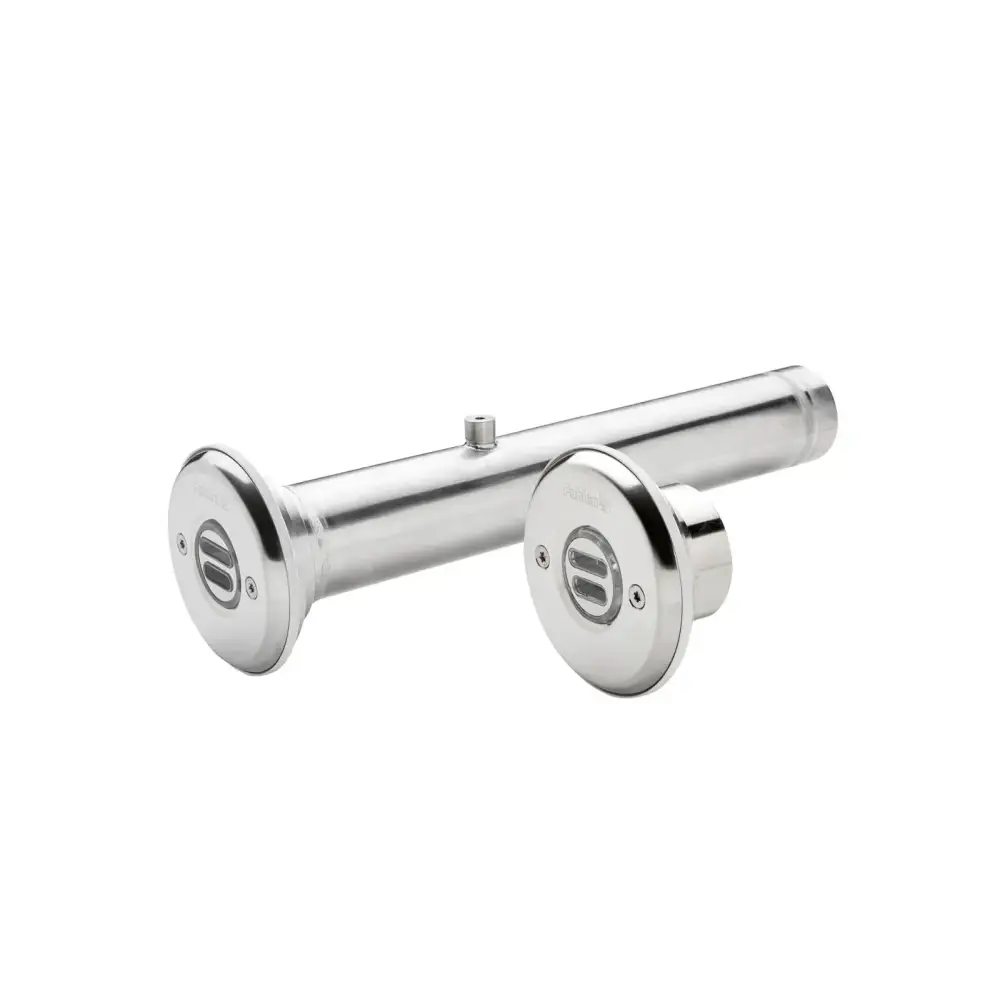

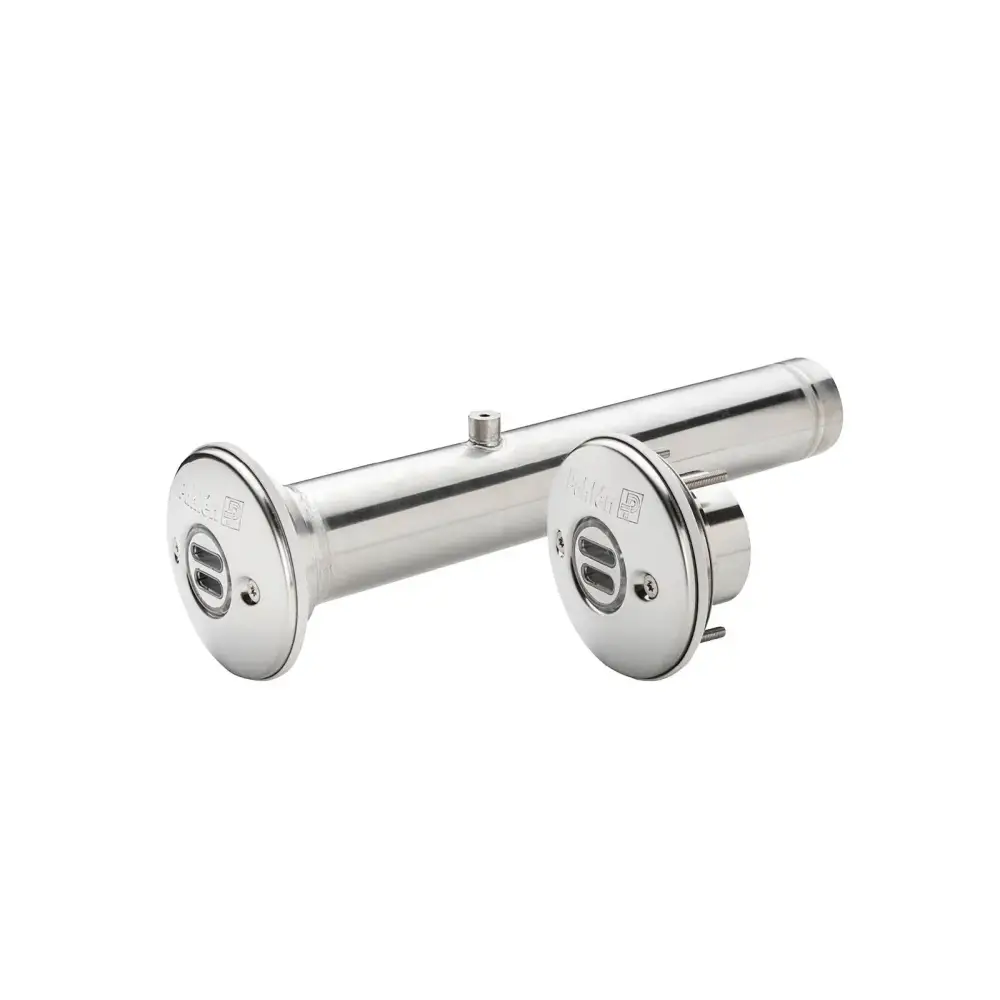

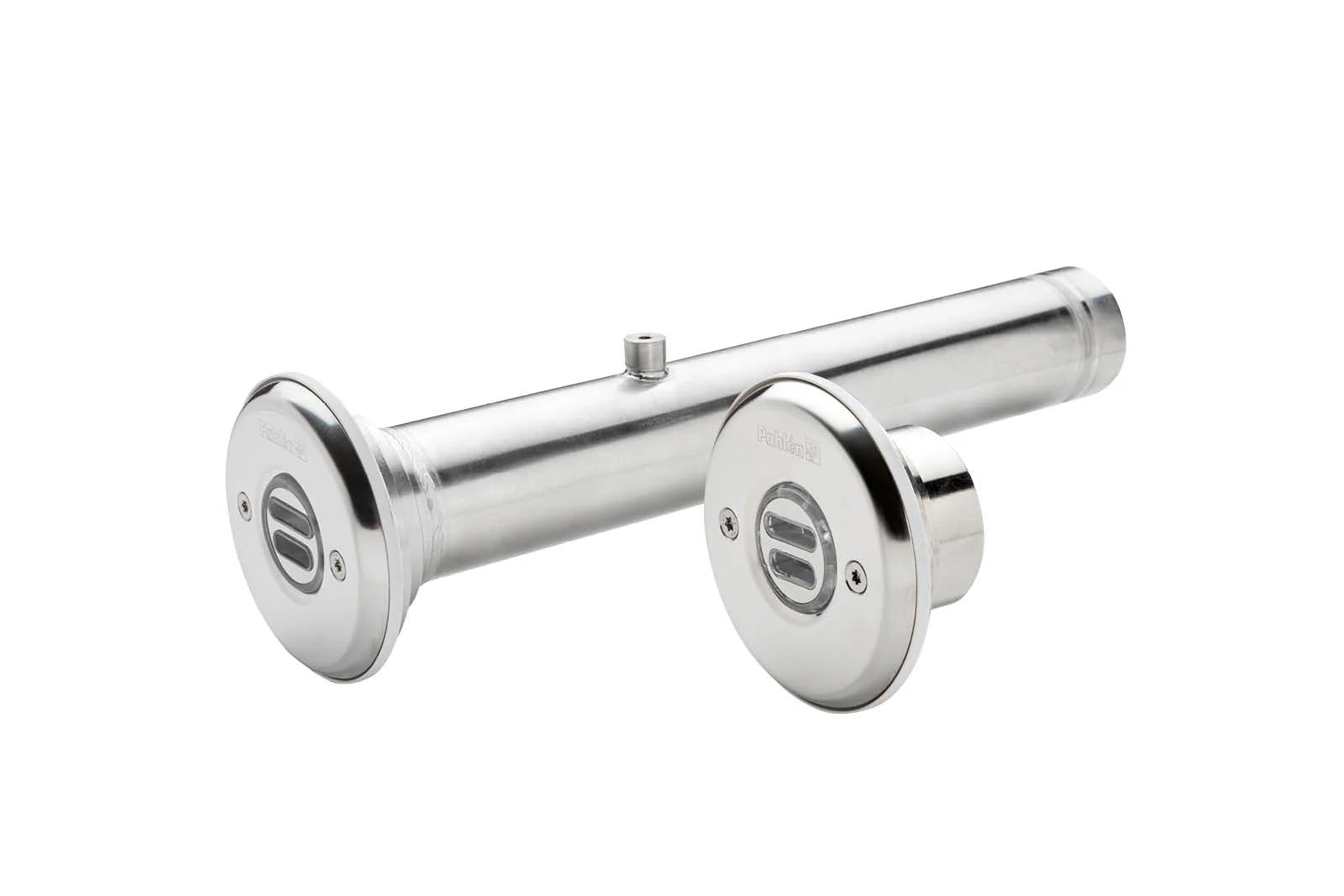

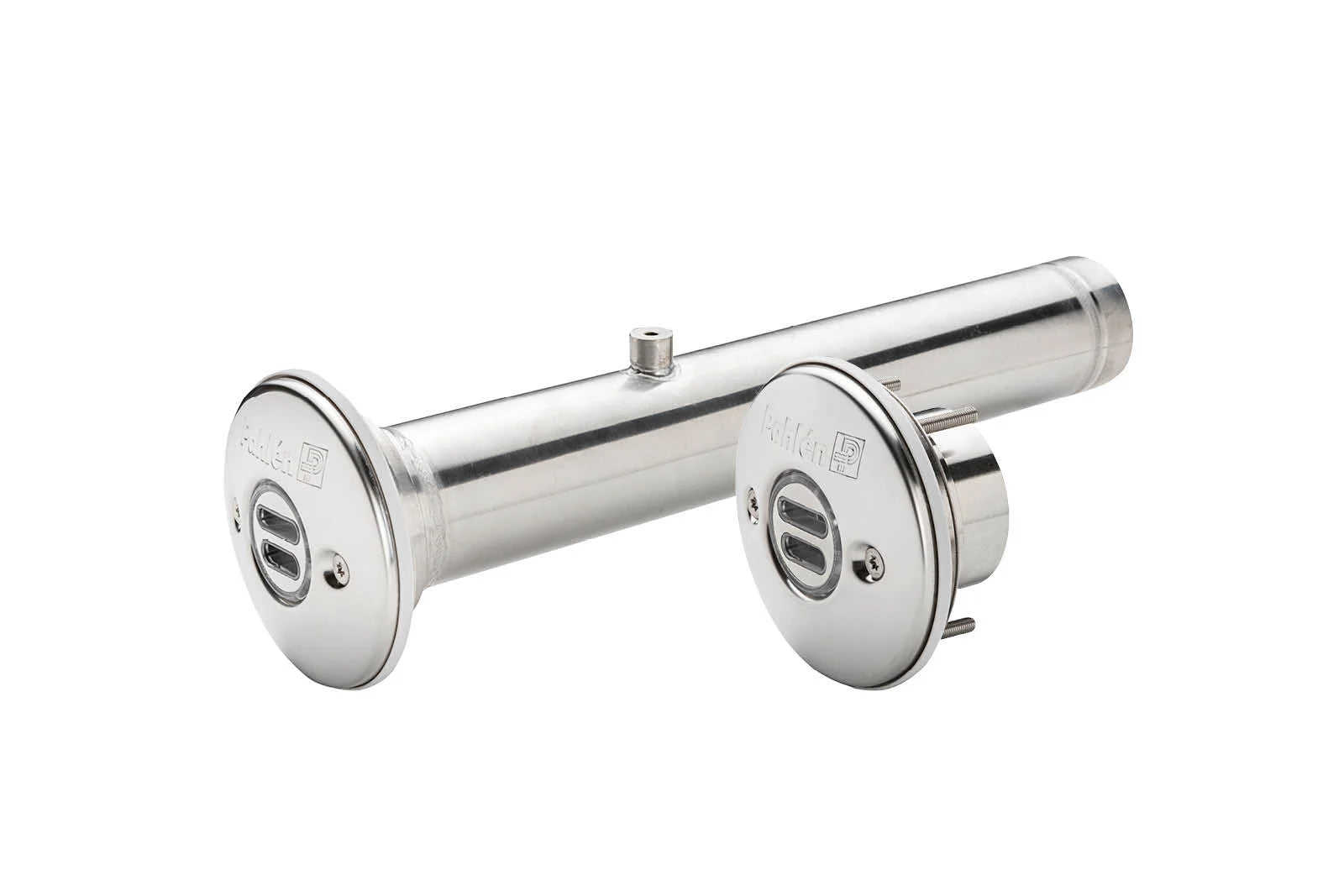

Pahlen Classic inlet nozzle

Pahléns Inlet Nozzle Classic is a crucial component for an efficient pool system, specifically designed to effectively return purified and heated water to your pool. These inlet nozzles play a central role in maintaining water circulation and thus ensuring optimal water quality. A significant advantage of this system is its universal compatibility; it is suitable for all types of pools, making Pahléns Inlet Nozzle Classic a versatile and practical choice for pool owners. In addition, the front is made of stainless acid-resistant steel, which not only guarantees exceptional durability but also contributes to an aesthetically pleasing appearance that withstands the demanding conditions of a pool environment.

The new Pahléns inlet nozzle stands out through its innovative design, which includes two oval nozzles. This configuration is carefully designed to optimise water flow and achieve a longer throw distance. The two nozzles are positioned 6 degrees apart, a detail that significantly improves circulation in the pool. For maximum flexibility, this inlet nozzle can be installed either horizontally or vertically, depending on the specific installation requirements of your pool. Furthermore, the nozzle can be adjusted ±11 degrees, providing additional control over the direction of the water flow and thus optimising water circulation in the pool.

With a recommended maximum flow rate of 6 m³/h, Pahléns Inlet Nozzle Classic is a powerful solution for efficient water management and contributes to a clean and healthy pool.

Features of Pahléns Inlet Nozzle Classic:

• A high-gloss polished front that contributes to an exclusive feel and makes cleaning easy, maintaining its attractive appearance over time.
• Made of stainless acid-resistant steel, ensuring exceptional resistance to corrosion and a long service life in demanding pool environments.
• An adjustable nozzle that allows fine-tuning of the water flow direction, optimising circulation in your pool for more even heat distribution and chemical dispersion.
• Versatile installation options, as it can be mounted in concrete, liner, or hollow-block pools, highlighting its flexibility and broad range of use for different pool constructions.
