Pahlen Maxi-Flo Heat Exchanger MF
In stock
Could not load pickup availability

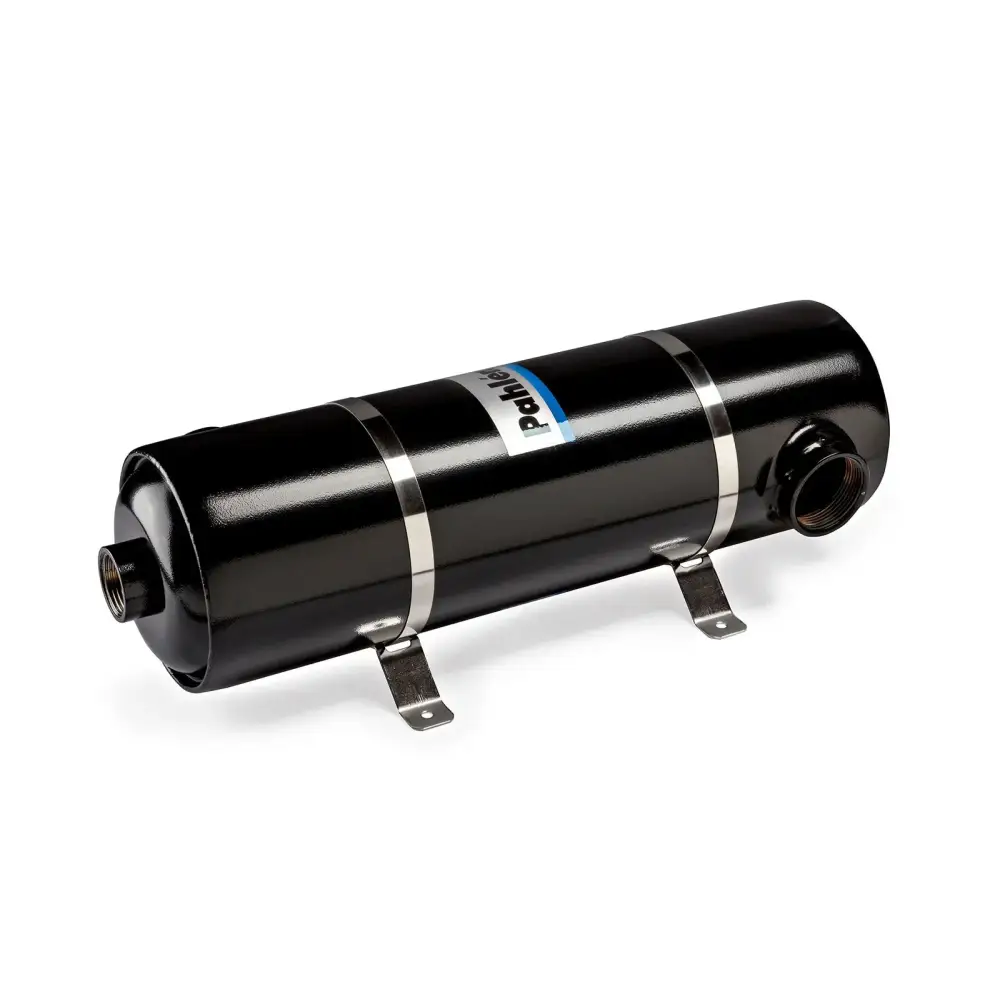

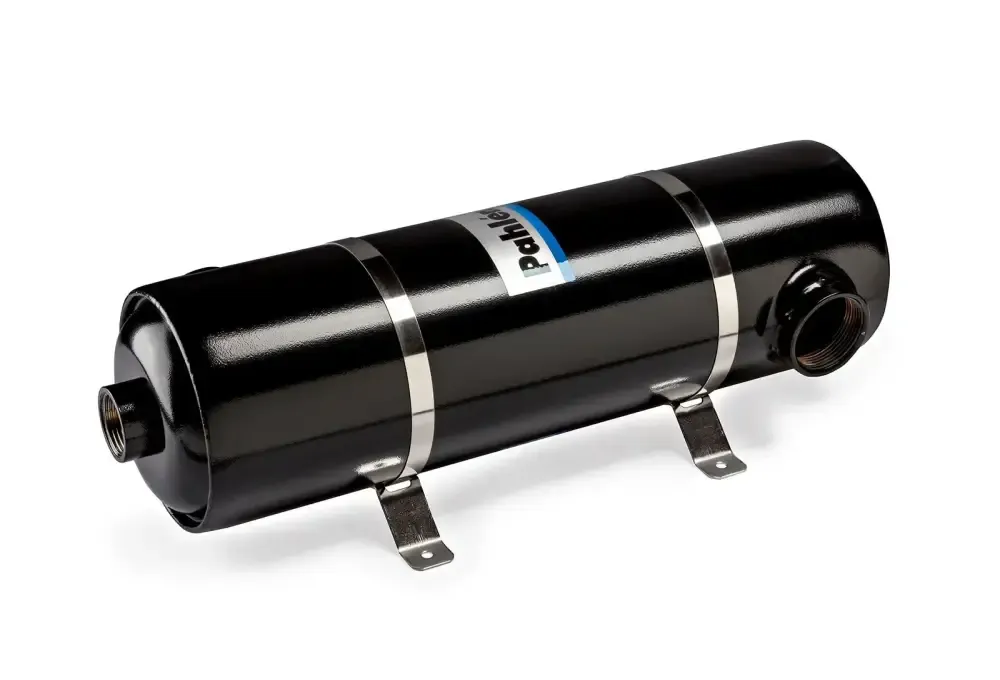

Heat Exchanger Maxi-Flo represents an advanced tube heat exchanger, developed to ensure exceptional efficiency in heat transfer.
Its construction, made of high-quality stainless acid-resistant steel, guarantees an optimised service life and outstanding resistance to corrosion. This makes Heat Exchanger Maxi-Flo a reliable and durable component in heating systems.
The unit has been designed for smooth and straightforward installation, thanks to the included adjustable brackets in stainless acid-resistant steel, which facilitate secure and efficient mounting.
The maximum pressure for the secondary side (pool water) is 5 bar and for the primary side (hot water) 10 bar.
Suitable for pools up to 450 m3
| Model | Output | Connection size primary / secondary | Max pool volume | Primary flow (hot water) | Secondary flow (pool water) |
|---|---|---|---|---|---|
| MF135 | 40 kW | 1″ / 1½″ | ~135 m³ | 25 l/min | 200 l/min |
| MF200 | 60 kW | 1″ / 1½″ | ~200 m³ | 30 l/min | 250 l/min |
| MF260 | 75 kW | 1″ / 2″ | ~260 m³ | 35 l/min | 300 l/min |
| MF400 | 120 kW | 1½″ / 2″ | ~450 m³ | 50 l/min | 360 l/min |
FEATURES
- The choice of material, consisting of stainless acid-resistant steel, contributes to a robust and durable construction with high resistance to aggressive environments and corrosion.
- The shell is precision welded to ensure high tightness and long-lasting durability during operation, minimising the risk of leakage.
- The heat exchanger is equipped with 37 seamless tubes, fitted with carefully designed flow restrictors for the hot water. This innovative design optimises the heat transfer process and contributes to maximum operating efficiency.
- The adjustable brackets, made of stainless acid-resistant steel, offer significant flexibility during installation - even in existing systems - and ensure stable and secure mounting in various environments.
- Heat Exchanger Maxi-Flo is available in four sizes with outputs of 40, 60, 75 and 120 kW, allowing adaptation to a wide range of system requirements and capacity needs.
- If higher capacity or scalability is required, several units can be connected in series to achieve the desired performance, offering flexibility for larger installations.
- The unit is intended for vertical installation, which is a critical aspect to consider when planning the installation space and optimising system performance.
- Weight: 3.6 kg
