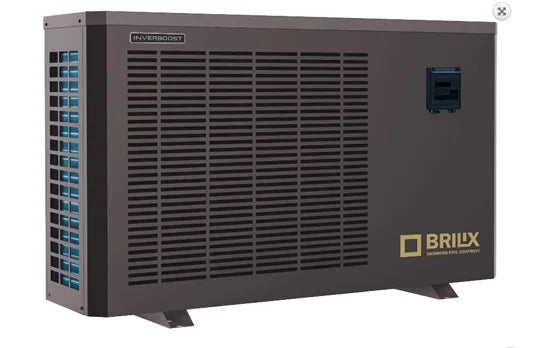

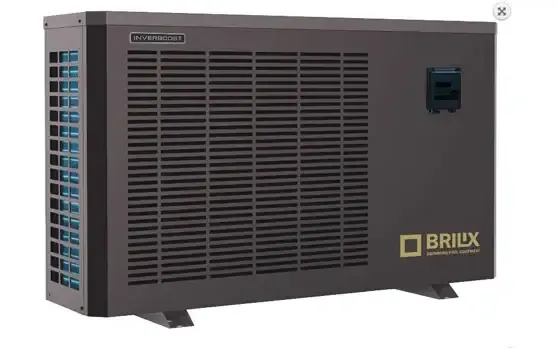

Pool heat pump BRILIX inverBOOST XHPFDPLUS 100 E 9 kW R32

Using a pool heat pump to heat the pool water is the most economical option, as the pump efficiently harnesses heat from the surrounding air and transfers it to the pool water, significantly reducing energy consumption.

The XHPFDPLUS and INVERBOOST C models represent outstanding "green" pool heat pumps thanks to their exceptional energy efficiency. Among these, the Brilix Inverboost XHPFDPLUS stands out with its innovative design and the option of expanded features such as a touchscreen and Wi-Fi connectivity for increased ease of use. In addition, the majority of variants use the environmentally friendly refrigerant R32, which helps reduce environmental impact. A 9kW R32 model, such as the Brilix Inverboost, offers both high performance and environmental awareness.

To optimise the performance of the pool heat pump and extend its service life, installation of a by-pass is strongly recommended. This bypass connection allows precise adjustment of the water flow into the pool heat pump, ensuring optimal efficiency.

Specifications for an exemplary model such as Inverboost XHPFDPLUS:
Delivered output: 9-2,3 kW
Input power: 1,43-0,27 kW
Recommended water flow rate: 3m3 / h
Pipe diameter: 50 mm
Length: 1008 mm
Width: 380 mm
Height: 577 mm
Package size: 1095x430x705 mm
Recommended pool volume: 0-40 m3
Pressure gauge: Yes
Digital display: Yes
Weight without water: 56 kg
Suitable for saltwater: Yes
Package weight: 68 kg
C.O.P .: 13-5,8
Cooling functions: Yes
Refrigerant: R32
Voltage: 220-240V
