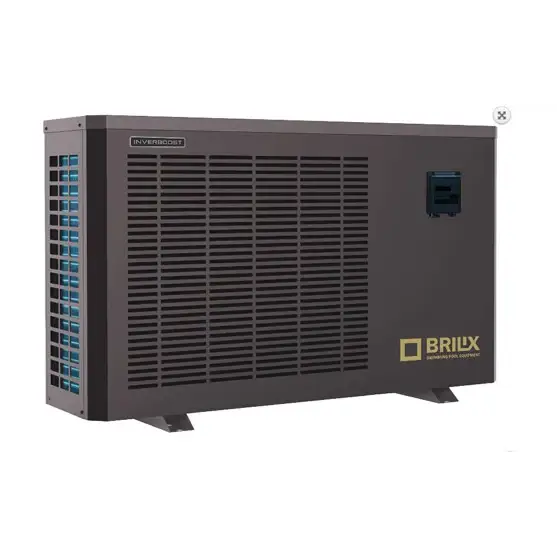

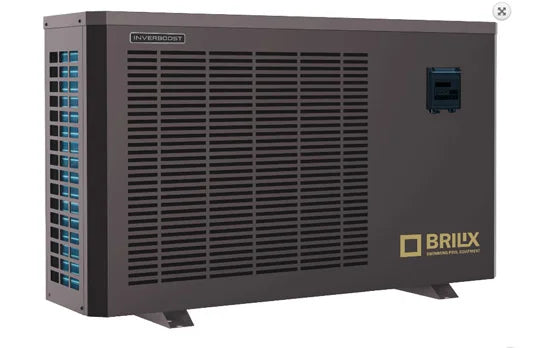

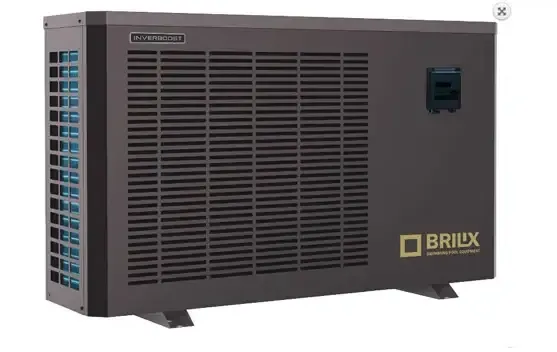

Pool Heat Pump BRILIX inverBOOST XHPFDPLUS 100 E 9kW R32

To use a pool heat pump to heat the pool water is the most economical option, as the pump efficiently utilizes heat from the surrounding air and transfers it to the pool water, significantly reducing energy consumption.

The models XHPFDPLUS and INVERBOOST C represent advanced "green" pool heat pumps thanks to their exceptional energy efficiency. Among these, the Brilix Inverboost XHPFDPLUS stands out with its innovative design and possibilities for extended features such as a touch screen and Wi-Fi connection for increased user-friendliness. The majority of variants also use the environmentally friendly refrigerant R32, which contributes to reduced climate impact. A 9kW R32 model, such as Brilix Inverboost, offers both high performance and environmental awareness.

To optimize the performance of the pool heat pump and extend its lifespan, the installation of a by-pass is strongly recommended. This by-pass connection enables precise adjustment of the water flow into the pool heat pump, ensuring that optimal efficiency is achieved.

Specifications for an exemplary model such as Inverboost XHPFDPLUS:
Output power: 9-2.3 kW
Input power: 1.43-0.27 kW
Recommended water flow rate: 3m³/h
Pipe diameter: 50 mm
Length: 1008 mm
Width: 380 mm
Height: 577 mm
Packaging size: 1095x430x705 mm
Recommended pool volume size: 0-40 m³
Pressure gauge: Yes
Digital display: Yes
Weight without water: 56 kg
Suitable for salt water: Yes
Packaging weight: 68 kg
C.O.P.: 13-5.8
Cooling functions: Yes
Refrigerant: R32
Voltage: 220-240V
