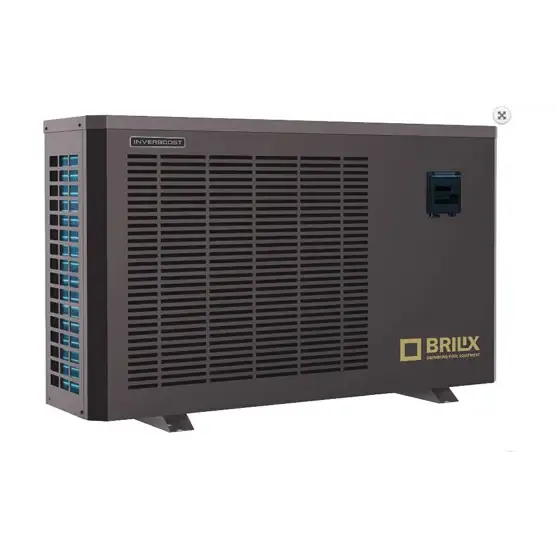

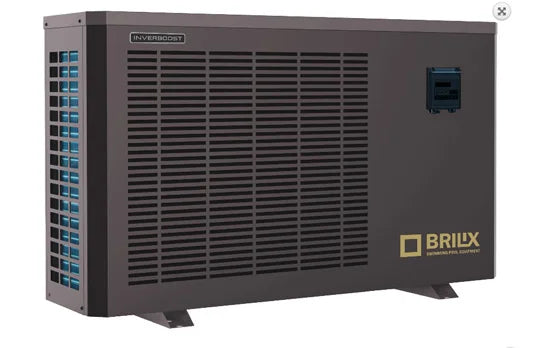

Pool Heat Pump BRILIX inverBOOST XHPFDPLUS 160 E 15kW R32

To heat pool water with a pool heat pump is the most cost-effective option. These pumps extract heat from the surrounding air and efficiently transfer it to the water in the pool, minimizing energy use and thereby operating costs.

The XHPFDPLUS and INVERBOOST C models, which include Brilix Inverboost and Inverboost XHPFDPLUS, represent "green" pool heat pumps thanks to their exceptional energy efficiency. These innovative heat pumps, such as the pool heat pump Brilix Inverboost, come with a modern design and offer the option to expand with a touchscreen and Wi‑Fi connectivity as an optional extra for increased user-friendliness and remote control. Most variants use the environmentally friendly refrigerant R32, which helps reduce environmental impact and meets modern environmental requirements.

To ensure optimal performance and maximum lifespan, installation of a bypass connection is recommended. A bypass allows adjustment of the water flow to the pool heat pump, which is crucial to achieve maximum efficiency and energy savings, as well as to facilitate maintenance and service.

Specifications for Brilix Inverboost XHPFDPLUS and Brilix Inverboost:

Output power: 16-3,8 kW
Input power: 2,67-0,29 kW
Recommended water flow rate: 5m3 / h
Pipe diameter: 50 mm
Length: 1050 mm
Width: 440 mm
Height: 709 mm
Packaging size: 1130x470x850 mm
Recommended pool volume size: 25-65 m3
Pressure gauge: Yes
Digital display: Yes
Weight without water: 78 kg
Suitable for saltwater: Yes
Packaging weight: 83 kg
C.O.P: 13-6
Cooling functions: Yes
Refrigerant: R32
Voltage: 220-240V
