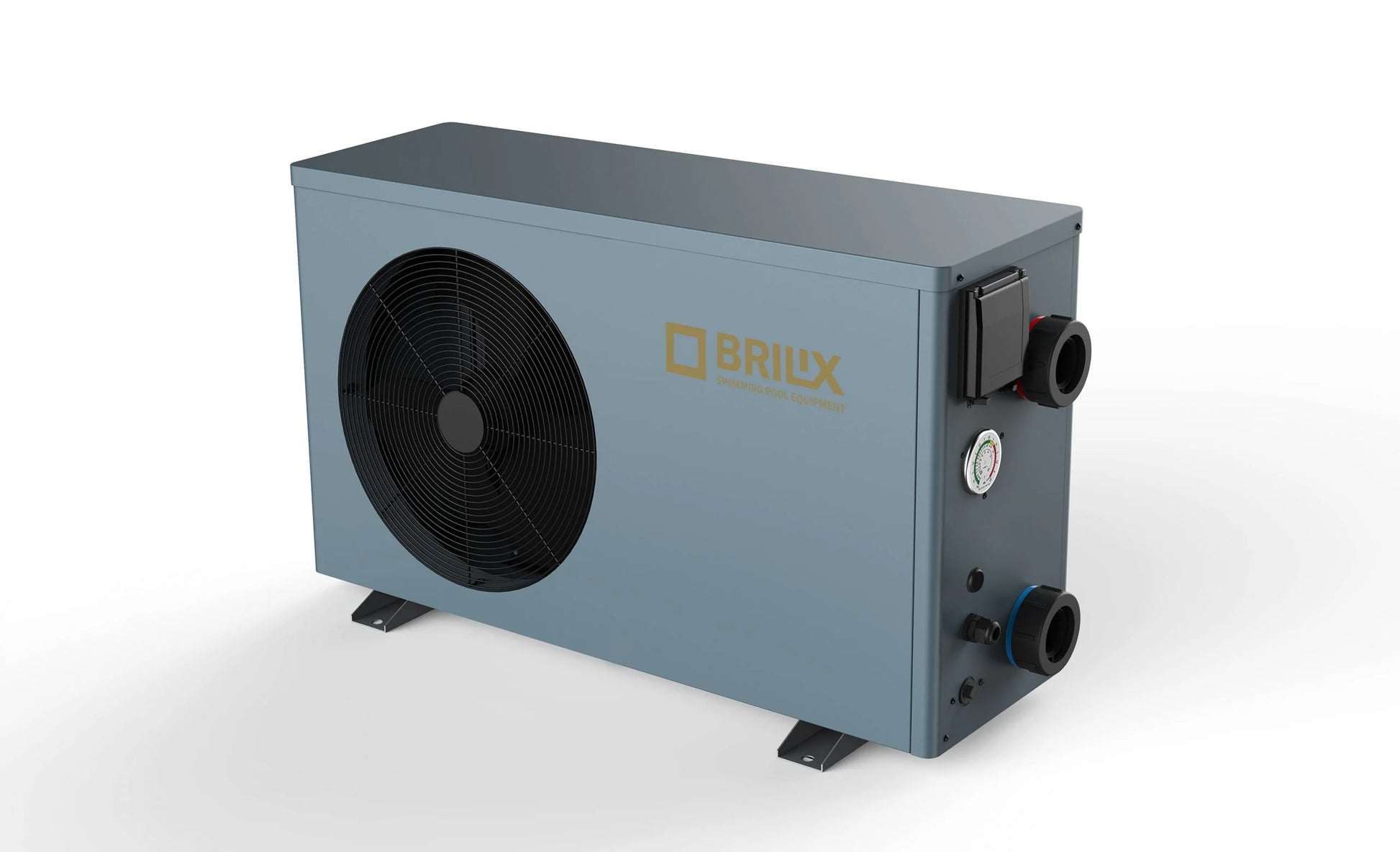

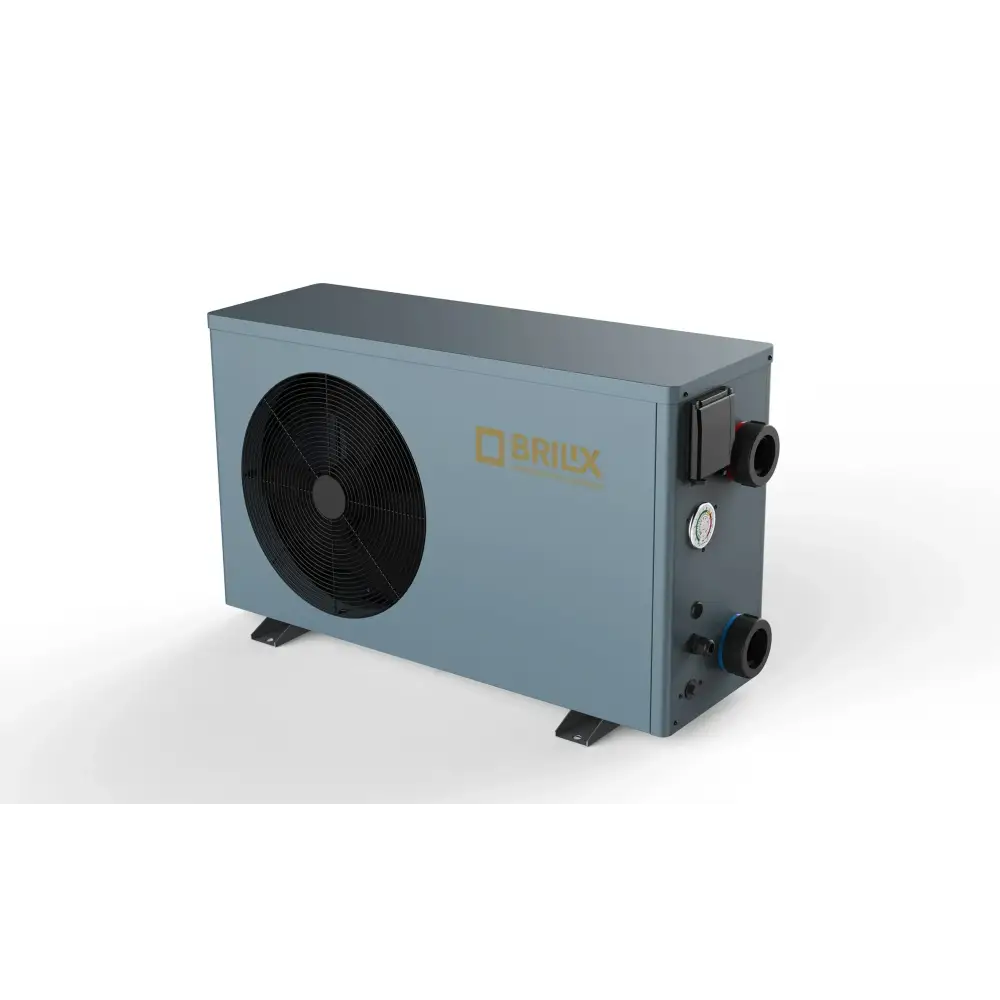

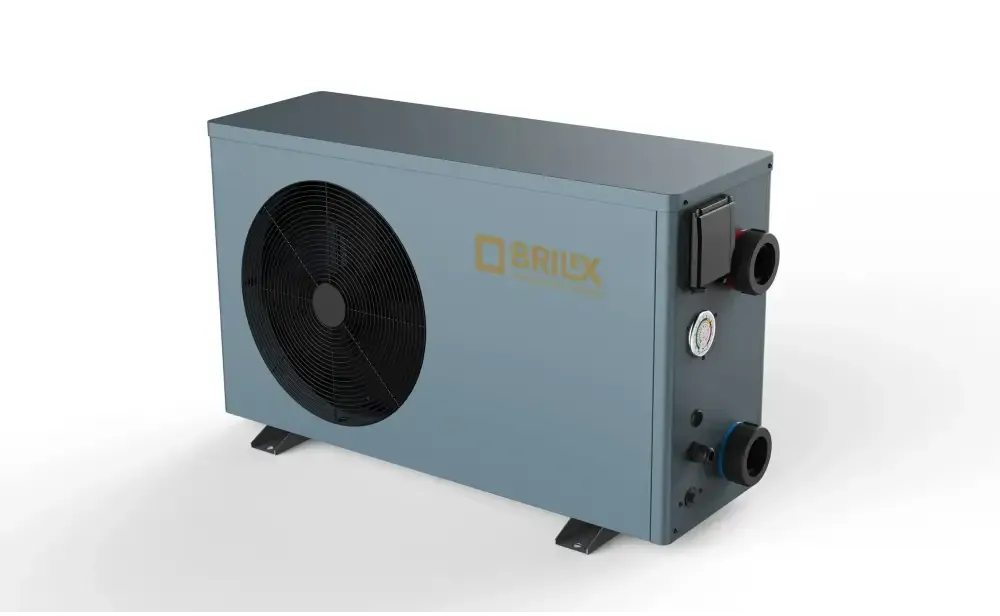

Pool heat pump BRILIX XHPFDPLUS 140 12kW R32

Using a pool heat pump to heat the pool water stands out as the most cost-effective option on the market. This type of pump utilizes heat energy from the surrounding air and transfers it efficiently to the water in the pool, which minimizes energy consumption and contributes to lower operating costs.

Specifically, the Brilix XHPFDPLUS and INVERBOOST C heat pumps are to be considered "green" pool heat pumps thanks to their exceptional energy efficiency. These models stand out with an innovative design and offer enhanced functionality through touch screen interfaces and Wi-Fi connectivity, enabling remote control and monitoring. A Brilix pool heat pump, such as the Brilix XHPFDPLUS, uses the environmentally friendly refrigerant R32, which further reduces their climate impact.

To ensure optimal performance and a long lifespan for your Brilix XHPFDPLUS pool heat pump it is strongly recommended to install a bypass. A bypass connection allows fine-tuning of the water flow into the pool heat pump, which is crucial for achieving the highest possible efficiency and performance from your Brilix XHPFDPLUS or similar unit. This ensures that the pump operates under optimal conditions.

The technical specifications for a 12 kW R32-model are as follows:
Output power: 12 kW
Input power: 1.92 kW
Recommended water flow rate: 3.5-7.1 m³/h
Length: 1045 mm
Width: 410 mm
Height: 695 mm
Packaging size: 1140x430x740 mm
Pressure gauge: Yes
Digital display: Yes
Weight without water: 61 kg
Packaging weight: 65 kg
C.O.P.: 6.25
Cooling functions: Yes
Refrigerant: R32
Recommended pool volume size: 35-60m³
Voltage: 220-240V
