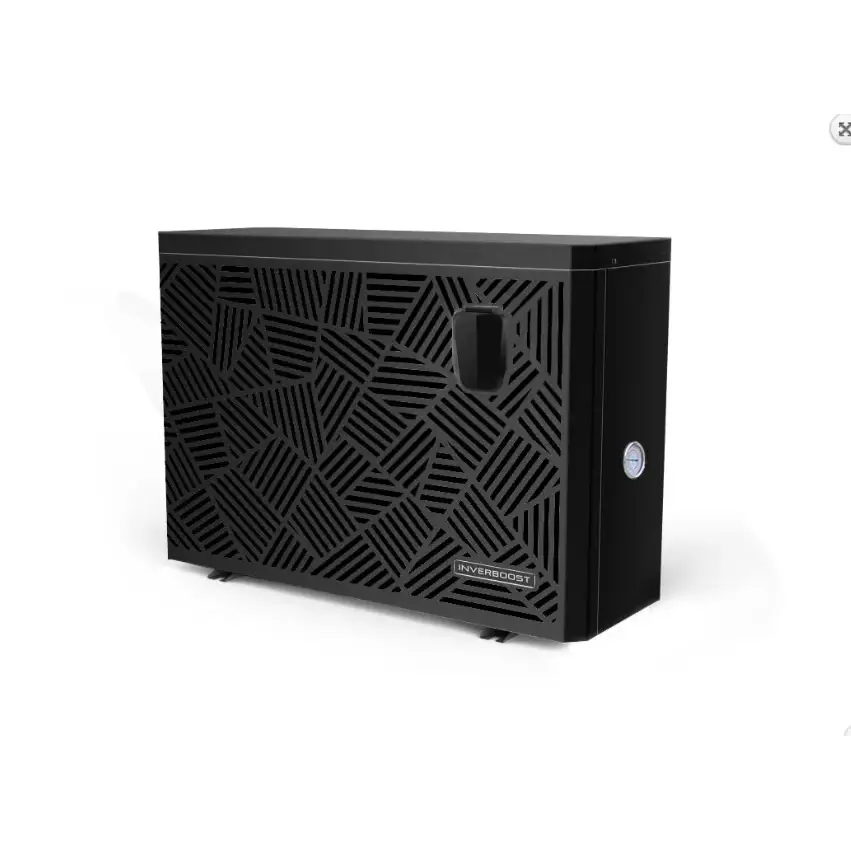

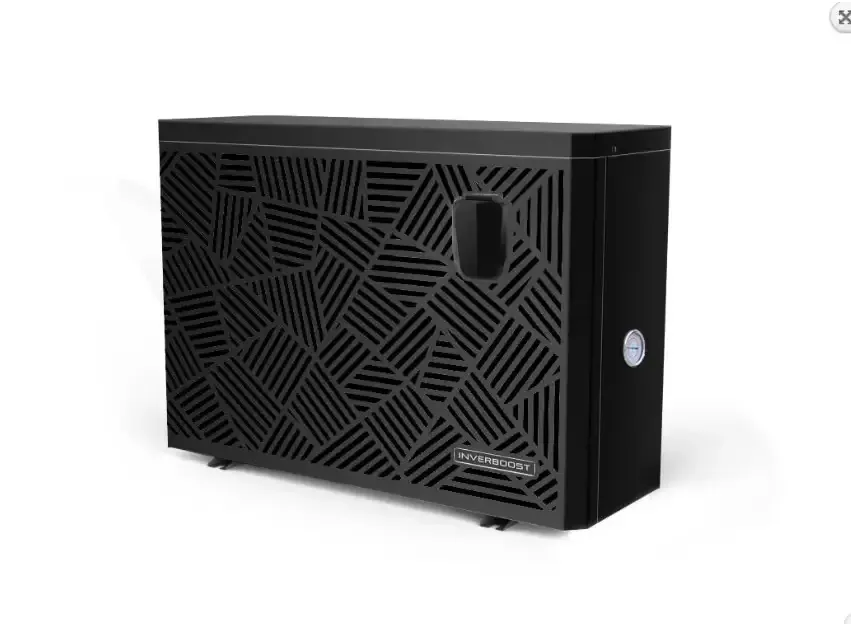

Pool Heat Pump BRILIX XHPFD PX 100 InverBoost 9.5kW R32

To use a pool heat pump to heat the pool water represents the most economical and environmentally conscious choice. This advanced technology efficiently captures heat energy from the surrounding air and transfers it to the pool water in the pool, resulting in significantly lower operating costs compared to conventional heating methods.

INVERBOOST PX heat pumps, including the highly specified model pool heat pump Brilix XHPFD, are designed to deliver maximum efficiency combined with exceptionally quiet operation. Their unique, modern design is immediately eye-catching. The user experience is further enhanced by the intuitive touchscreen control and the convenient Wi-Fi connectivity, which enables easy remote control and monitoring. A responsible choice is the use of the environmentally friendly refrigerant R32, which actively contributes to reduced climate impact.

To optimize performance and ensure that your Brilix XHPFD pool heat pump achieves its maximum efficiency, it is strongly recommended to complement the installation with a bypass. A bypass connection allows precise adjustment of the water flow to the pool heat pump, which is crucial for optimal operation and heat production when you want to heat the pool water effectively. This ensures that your pool heat pump Brilix XHPFD operates under the most favorable conditions.

Technical Specifications

• Output power: 9,5-2,4 kW
• Power consumption: 1,51-0,15 kW
• Recommended water flow rate: 2,9 m³/h
• Pipe diameter: 50 mm
• Length: 855 mm
• Width: 325 mm
• Height: 565 mm
• Package dimensions: 942x375x695 mm
• Recommended pool volume: 12-34 m³
• Pressure gauge: Yes
• Digital display: Yes
• Weight without water: 68 kg
• Suitable for saltwater: Yes
• Package weight: 73 kg
• C.O.P.: 16-6,3
• Cooling functions: Yes
• Refrigerant: R32
• Voltage: 220-240 V
