AstralPool Sena circulation pump

This series of motors offers a wide range of outputs to meet different needs. For single-phase versions, the output ranges from 1/3 HP up to 1.25 HP, while three-phase motors are available from 3/4 HP to 1.25 HP. All motors are GS-marked, confirming that they meet high safety standards.

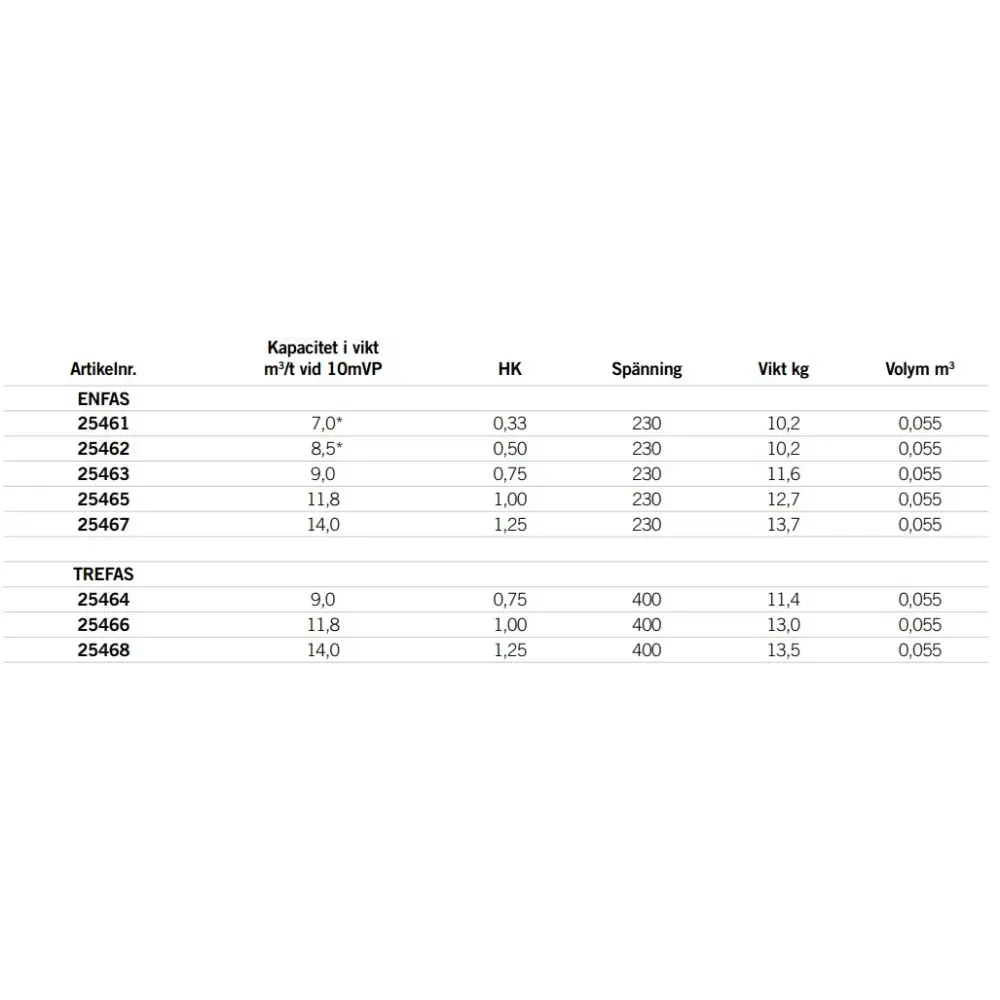

The motors are designed with IP-55 motor protection, providing robust protection against both dust and water jets. They also have insulation class F, ensuring reliable operation under varying temperature conditions. All components that come into contact with water are made of SS AISI-316, a high-quality stainless steel that ensures excellent corrosion resistance and a long service life, which is particularly important for an Astralpool Sena circulation pump. The connection is facilitated by a Ø 50 mm union coupling, simplifying both installation and maintenance. The flow rates are specified at different head heights (mVP): 6 mVP for 1/3 HP pumps, 8 mVP for 1/2 HP pumps, and 10 mVP for the remaining pumps. All models have a rotational speed of 3000 revolutions per minute.

This Sena circulation pump is certified according to EN-60335-2-41:1996, confirming its compliance with European safety standards for electrical appliances. Further confirmation of the product's quality and safety is provided by its IP55 sealing rating, as well as its GS and TÜV approvals. This robust design, often featuring components in black plastic, makes it an excellent choice as a pool pump, especially as an Astralpool Sena circulation pump.
